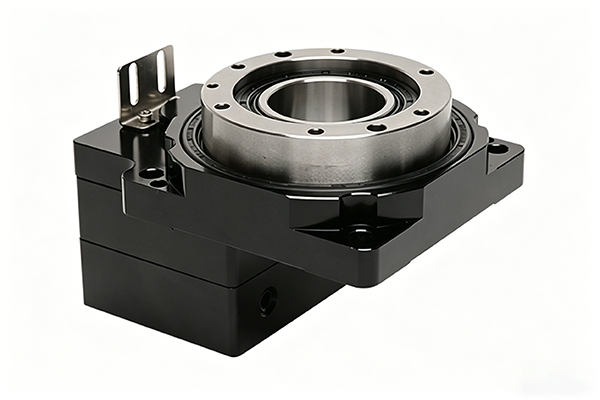

The rotary table is a core component of 5-axis machining centers and CNC boring and milling machines. Its precision, rigidity and stability directly determine the machining quality. As a German precision bearing brand, SKL provides a full range of special bearings for rotary tables, featuring high precision, high rigidity and long service life, making it the preferred choice for high-end rotary tables.

1. Core Components of Rotary Table and SKL Bearing Selection

1.1 Rotary Support Unit

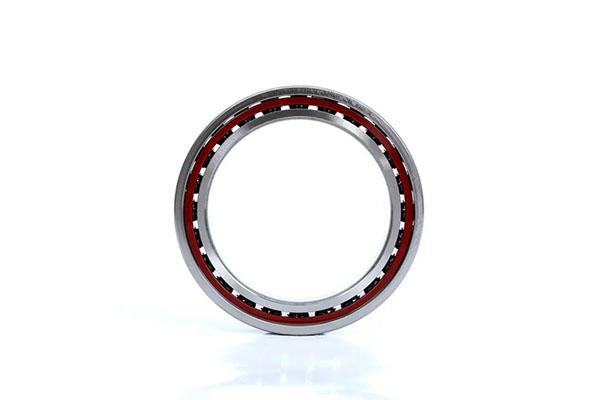

It serves as the main load-bearing and rotary reference, bearing combined loads and overturning moments.Model: HCB719 series hybrid ceramic angular contact ball bearing (HCB71920-E-T-P4S)Advantages: Adopting Si₃N₄ ceramic balls and special bearing steel rings with a 15° contact angle design. The grease lubrication speed limit reaches 24000 rpm, and the temperature rise is reduced by 42% compared with all-steel bearings, suitable for small and medium-sized precision rotary tables requiring high speed and low heat generation.

1.2 Drive Transmission Unit

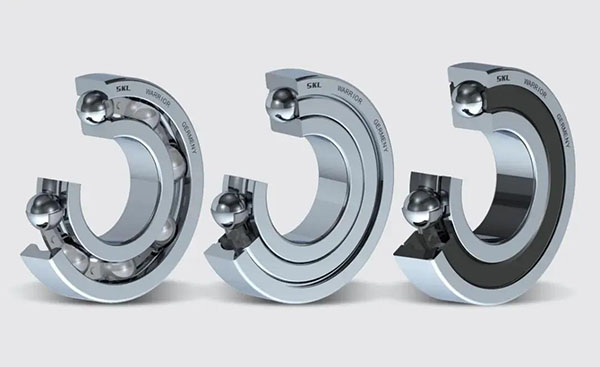

Used for supporting worm gears, gears and motors, adapting to alternating loads and low noise requirements.Model: SKL-72 series angular contact ball bearings (7212, 7214), SKL-63 series deep groove ball bearing (6308-2RSR)Advantages:72 series: P5 precision grade with optional 15°/25° contact angles, capable of bearing combined radial and axial loads. Brass cage reduces high-speed noise to ≤58dB, suitable for supporting both ends of worm shafts.6308-2RSR: Inner diameter 40mm, outer diameter 80mm, double-lip rubber seal up to IP6X grade, temperature resistance from -30℃ to +120℃, friction coefficient less than 0.1, ideal for light-load and high-speed support of motors and transmission gears.

1.3 Positioning and Locking Unit

For indexing and hydraulic locking support, bearing impact and heavy loads.Model: 29418-E1, 29420-E1Advantages: Spherical roller design with axial rated dynamic load up to 120kN, excellent heavy load and impact resistance; matched with cross roller bearings to ensure high positioning accuracy.

1.4 Auxiliary Support Unit

Applied to balance cylinder and auxiliary roller support, featuring low speed, wear resistance and long service life.Model: NU2210-E-M1Advantages: P6 precision grade, separable mounting design without inner ring ribs, strong radial bearing capacity, suitable for radial support of balance cylinders; roller bearings enjoy long maintenance-free service life.

2. Performance Comparison Before and After Replacement

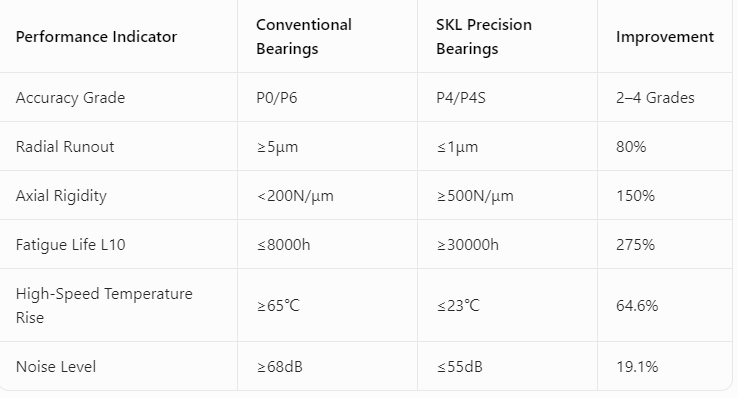

Traditional general bearings have common problems such as low precision, weak rigidity, short service life, high temperature rise and loud noise, which cannot meet the requirements of precision machining. After replacing with SKL precision bearings, the precision, rigidity and service life are comprehensively improved, temperature rise and noise are significantly reduced, and machining stability and reliability are greatly optimized.

3. Practical Application Case

Case: Medium and Small 5-Axis Machining CenterWorking conditions: Rotary table diameter 800mm, load capacity 3 tons, speed 0-120rpm, used for precision machining of aerospace aluminum alloy parts, required rotary accuracy ≤0.005mm.Original scheme: Mixed ordinary 7210 angular contact bearings and deep groove ball bearings. Precision drift occurred after 6 months of operation, and the workpiece rejection rate reached 8%.SKL solution: HCB71918-E-T-P4S hybrid ceramic angular contact bearing for rotary support, 7212 bearing for drive unit, NU2208-E1-M1 bearing for auxiliary support.Application effect: The rotary accuracy is stably controlled at 0.002mm, no precision attenuation after 20000 hours of continuous operation, workpiece rejection rate dropped to 0.5%, maintenance cycle extended to 3 years, and overall cost reduced by 25%.

4. Core Advantages of SKL

· German Craftsmanship: Nearly 70 years of precision manufacturing experience with strict quality inspection and outstanding reliability.

· Customized Adaptation: Customized structure, material and lubrication scheme according to working conditions with fast delivery.

· Local Service: Distribution center set up in Shanghai, 24-hour delivery and 4-hour technical response.

· Cost-Effective: The price is 15%-20% lower than similar imported brands with lower comprehensive operating costs.

5. Conclusion

SKL bearings cover the full component selection of machine tool rotary tables. With high precision, high rigidity and long service life, it solves the pain points of traditional bearings, effectively improves equipment accuracy and stability, reduces operation and maintenance costs, and is an ideal choice for high-end machine tool rotary tables.
